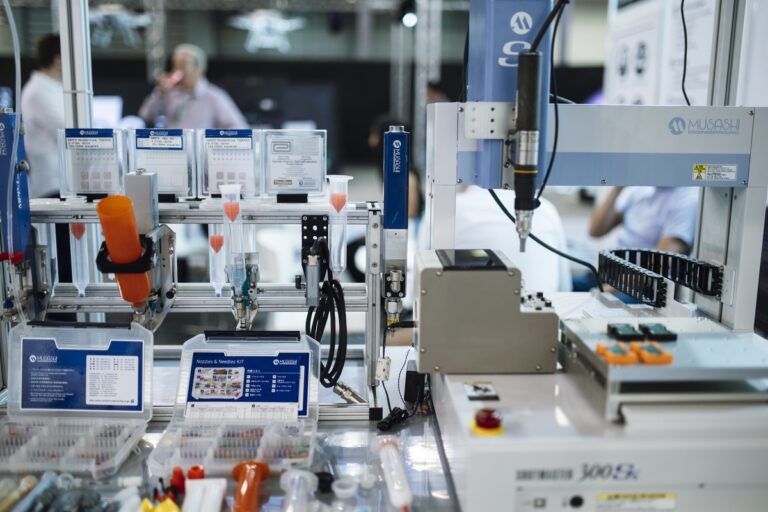

Robot motion planning links modeled geometry and task constraints with timed movements that must be verified on the physical application. Photo: Shixart1985 / Wikimedia Commons
Understand robot motion planning, configuration space and trajectories, then test collision models, timing, controller execution and recovery in a complete application.
Robot motion planning finds a way for a mechanism to move from its current state to a desired state while respecting the constraints represented in its model. For an arm, that involves the movement of every relevant link, the attached tool and any carried object.
A tool reaching its target is only one requirement. The movement also needs acceptable clearance, timing, load behavior and execution feedback. This guide builds on our robot arm guide and ROS 2 guide to explain how a planned path becomes a testable physical operation.
Key Takeaways
Plan the full robot configuration and attached load, because a clear tool path can still produce collisions involving the elbow, wrist, workpiece or surrounding equipment.
A geometric path needs timing, valid motion limits and a compatible controller before execution, with the final processed trajectory checked against the actual application.
Evaluate planning success, execution quality and complete-cycle outcomes separately, and define recovery behavior when the scene, starting state or task changes.
Task Planning, Motion Planning and Control
Task planning decides what should happen: collect a component, load a machine and return to a waiting pose. Motion planning finds a feasible movement for an individual step. Control makes the physical mechanism follow the requested movement.
These layers exchange information but do not replace each other. A successful motion does not prove the gripper acquired the part. A valid task sequence does not establish a collision-free route through the cell.
MoveIt’s concept documentation separates kinematics, planning, planning-scene information and trajectory processing. This modular view helps locate a failure before changing unrelated settings.
For a practical specification, define the movement’s start condition, goal condition and constraints. Also define how the application confirms that the physical action succeeded and which layer owns a failure response.
Configuration Space and Task Space
Task space describes the tool or workpiece in the coordinates relevant to the job, such as its position and orientation above a fixture. Configuration space describes the robot’s joint arrangement.
Different joint configurations can sometimes place the tool at the same pose. An arm might approach with its elbow on one side or another, producing different clearances even though the tool’s final position matches.
Forward kinematics calculates a pose from joint values. Inverse kinematics seeks joint values for a requested pose. The MoveIt kinematics reference introduces these relationships. A goal may have several usable solutions, restricted solutions or none within the configured limits.
Choose goal definitions that match the process. A handling operation may tolerate a range of tool orientations, while a nozzle entering a narrow opening may require a more specific approach. Unnecessary constraints can make a solvable task harder.
A Path Is Different From a Trajectory
A path describes a sequence of configurations or poses. A trajectory adds how that movement unfolds over time. The distinction matters because geometric feasibility does not establish acceptable speed, acceleration or actuator loading.
Representation
What it establishes
What remains to check
Tool waypoints
Selected process positions and orientations
Intermediate motion, joint configuration and clearance
Geometric path
A route through the modeled configuration space
Timing, dynamic limits and compatibility with execution
Timed trajectory
Requested motion with time and derivative information
Tracking behavior, physical loads and process outcome
Executed cycle
What the physical system actually did
Repeatability across the required operating variation
MoveIt’s timing tutorial describes velocity and acceleration limits and trajectory post-processing. It also notes that some processing can alter the geometric path within a tolerance, making further collision checking relevant.
Validate the final trajectory sent to the controller, not just an earlier visualization. Record the configuration that produced it so a software update or changed limit does not silently alter the accepted movement.
Build a Planning Scene That Matches Reality
The planning scene represents the robot state, relevant objects and relationships used for checking a motion. Fixtures, tables, guards and adjacent equipment must have suitable geometry and positions in a common reference system.
MoveIt’s scene tutorial covers collision and constraint checking. Its allowed-collision settings describe pairs that are exempted from a check; those exemptions need deliberate justification rather than being used to hide an inconvenient result.
Include the complete end effector. Model the fingers in the relevant open and closed states, adapters and important protrusions. Service cables can also constrain real movement even when the software’s rigid geometry does not describe them.
After picking up a part, the application needs an appropriate representation of the attached load. A path that cleared the fixture with an empty gripper may be invalid once a long workpiece is carried through the same area.
Our gripper guide explains why acquisition, retention and release belong in the overall handling design. Planning must use the physical state that the task actually reached.
Joint Motion and Cartesian Motion
A joint-space movement coordinates the axes toward a target configuration. The tool may follow a curved route. A Cartesian process movement constrains the tool path in workspace, for example along a straight insertion or dispensing segment.
Neither description alone guarantees a suitable motion. A straight tool movement can force difficult wrist behavior, while a joint movement can swing an elbow through an obstacle. Inspect the whole mechanism along the route.
Process paths also require the right tool reference. Our calibration guide explains how tool and workpiece frames connect coordinates to the physical installation.
Separate free-space transit from process-critical motion. A transit route may prioritize clearance and travel time, while a contact or dispensing segment may impose orientation, speed and path requirements that limit the available options.
Singularities and Joint Limits
A singular configuration changes the relationship between joint movement and achievable tool motion. Near such conditions, some requested Cartesian movements can require unfavorable joint behavior or become difficult to execute as intended.
A path can also approach an axis limit while the tool appears comfortably inside the overall workspace. The advertised reach envelope does not show every usable orientation or intermediate configuration.
Review joint values along representative movements. Where appropriate, change the approach, tool orientation, base placement or fixture arrangement instead of trying to force an awkward route through tuning alone.
Check the exact robot and controller documentation for permitted behavior and limits. A generic planning example is not a substitute for the manufacturer’s motion constraints or a validated cell design.
How Planning Algorithms Find Routes
Sampling-based planners explore candidate configurations and connect valid movements through the available space. Roadmap approaches can reuse connections across queries; tree-based methods can search outward from a particular start or goal.
The Open Motion Planning Library’s planner catalog documents families such as PRM and RRT. These are tools with different characteristics, not a ranking that identifies one universally best planner.
Optimization-based approaches can refine a candidate movement according to objectives and constraints. A shorter path, wider clearance and smoother joint motion may compete. Define what the application needs rather than accept an undocumented default score as the business objective.
A timeout means the chosen search did not find an acceptable result within its allocation. It does not by itself prove that no physical solution exists. First check the start state, goal, scene and constraints before increasing computation time.
Clearance, Uncertainty and Changing Scenes
A collision check is evaluated against a model. It cannot establish physical clearance more accurately than the geometry, registration and state estimates support. A few millimeters of virtual separation may disappear with fixture variation or a shifted grasp.
Choose clearance requirements around the process and uncertainty, with appropriate engineering review. Do not treat a generic padding number as a universal safety distance. The required margin depends on the installation and consequences.
If a camera updates object positions, define when the planning scene is considered current and what happens if the object moves afterward. Our vision guide discusses the measurement and timing conditions behind those observations.
Dynamic replanning also needs an application-level strategy. Decide whether the robot stops, waits for a stable scene or uses an approved alternate movement. Software that can calculate another path still requires a valid physical execution and protective architecture.
Execution Feedback and Recovery
A planner sends a request to an execution system; the mechanism then has to follow it. Joint naming, units, starting state, limits and controller interfaces must agree. Track feedback and final status instead of treating transmission as completion.
MoveIt’s controller guide describes interfaces between planning and lower-level execution. The controller implementation and robot hardware still determine the physical response.
Define recovery from an interrupted movement with the actual current state. A previously valid plan may no longer begin where the robot is standing. The load, gripper state and machine permissions may also have changed during the interruption.
For machine tending, completion might require the part to be seated and the arm to be outside the closing envelope. Reaching an intermediate pose does not establish that the machine can begin its next cycle.
Test the Complete Planning Pipeline
Build a representative collection of tasks rather than demonstrate a single easy goal. Include product variants, different start configurations, occupied stations and plausible changes in part position. Keep test conditions identifiable.
Measure planning success rate and computation time separately from execution success and completed good cycles. Also record interventions and failed attempts. Repeatedly replanning until one attractive path appears can conceal unreliable behavior.
Consider an illustrative cell that permits 20 seconds for a transfer. If scene acquisition uses 0.5 seconds, planning 1.5 seconds and movement 12 seconds, the remaining six seconds must cover confirmation, handoffs and variation. Faster planning is not the most valuable improvement if failed grasps dominate the delay.
Use simulation to test geometry and explore difficult cases, then verify the assumptions with controlled physical trials. Our digital twins guide explains why a detailed model still needs evidence for the decision it supports.
Keep ordinary collision checking distinct from validated protective functions. A plan is a proposal based on modeled conditions; the completed system needs appropriate safeguarding and operating procedures.
Make the Accepted Motion Maintainable
Save robot models, tool geometry, transforms, joint limits, planner settings and controller configuration together. Record which versions passed acceptance and which changes trigger renewed testing.
Prefer understandable task constraints and diagnostic logs over a growing collection of unexplained exceptions. If a new fixture repeatedly causes planning failures, a layout change may provide a more robust solution than additional search time.
The useful outcome is a repeatable physical task with observable success and recoverable failures. A smooth animation is valuable for inspection, but production readiness comes from the complete planning, execution and verification chain.
Frequently Asked Questions
What is robot motion planning? It is the search for a feasible movement from a starting state to a goal under modeled constraints, including joint limits, obstacles and task requirements.
What is the difference between a path and a trajectory? A path describes where the robot moves. A trajectory includes how the movement progresses over time, with information needed for execution such as timing and joint motion rates.
Does a clear tool path mean the robot will avoid collisions? No. The elbow, wrist, fingers and carried object can collide even when the selected tool point has clearance. Check the complete robot and load along the movement.
Does a planning timeout mean the target is impossible? Not necessarily. It may reflect search settings, an invalid starting state, restrictive goals or a scene error. Diagnose those conditions before concluding that the physical task is infeasible.
Can simulation replace physical motion testing? No. Simulation supports layout and algorithm evaluation, but its geometry, timing and hardware assumptions need verification against the real installation.
Is motion planning a safety system? Ordinary planning and collision checking should not be assumed to provide validated protective functions. Assess the complete application’s safeguarding separately with suitable specialists.
